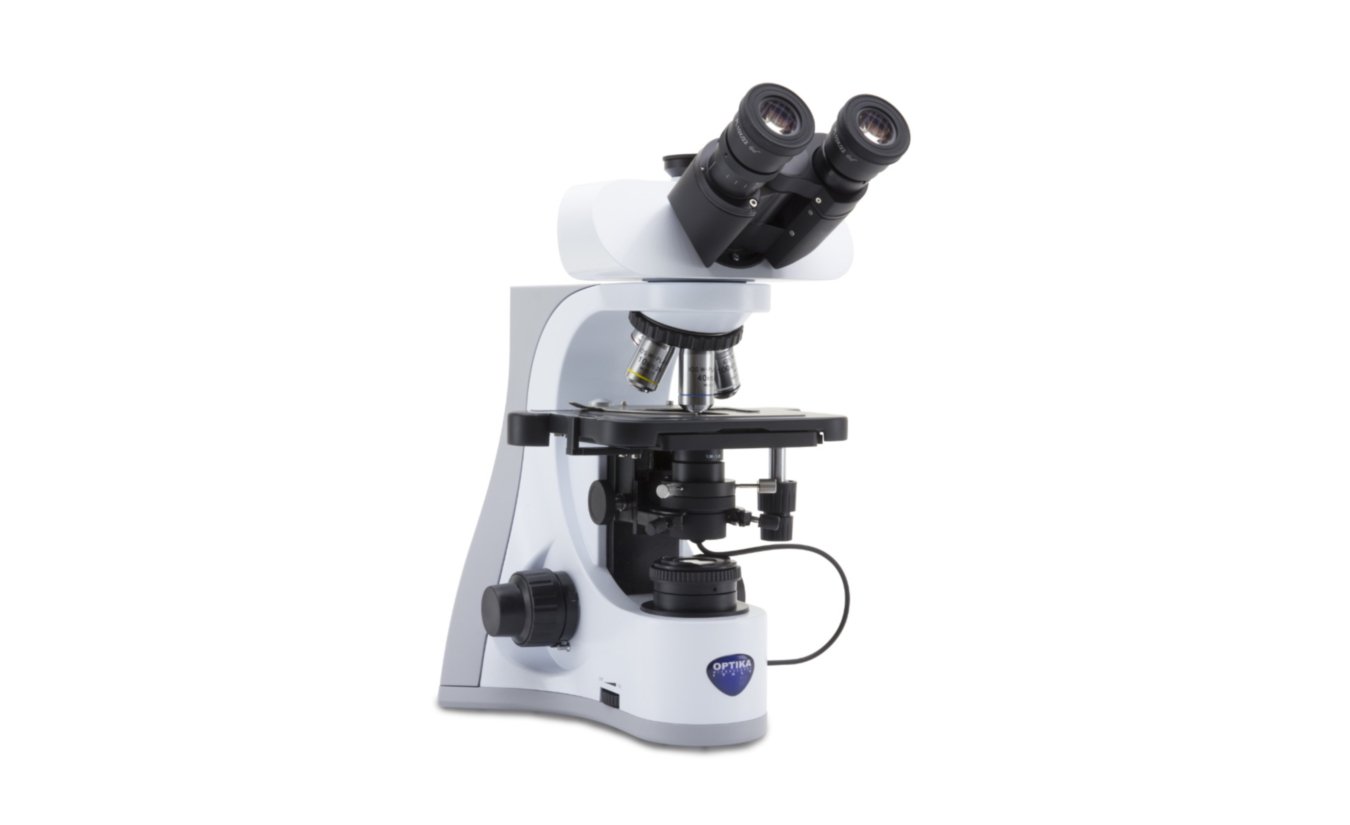

OPTIKA B-510DK Darkfield Microscope

The OPTIKA B-510DK is a professional darkfield microscope designed for live blood analysis, microbiology and cell health observation. It combines premium optics with intuitive handling and is available exclusively at Meditech Europe– including full technical training and interpretation course by Dutch darkfield expert Ron Havenaar.

Built for professional live blood microscopy

The B-510DK supports brightfield and oil immersion darkfield observation, featuring a high-contrast darkfield condenser (N.A. 1.36) for crystal-clear images of live cells and microorganisms. Without any staining or fixation, you can observe:

• Red and white blood cells

• Parasites, yeasts and bacteria

• Intracellular debris and metabolic waste

• Indicators of biological terrain

Its IOS W-PLAN objectives (4x, 10x, 40x, 100x oil with iris) provide wide, flat fields of view and are fungus-resistant.

Technical specifications

• Head: Trinocular, 30° inclined, 360° rotatable, 50/50 light split

• Interpupillary distance: Adjustable from 50 to 75 mm

• Diopter adjustment: On the left eyepiece

• Eyepieces: WF10x/22 mm, high eye-point, with rubber guards

• Nosepiece: Quintuple, ball-bearing mounted

• Objectives:

  • IOS W-PLAN 4x/0.10

  • IOS W-PLAN 10x/0.25

  • IOS W-PLAN 40x/0.65

  • IOS W-PLAN 100x/1.25 (oil, iris)



• Stage: Rackless mechanical stage, 233×147 mm, X-Y range 78×54 mm

• Focus: Coarse and fine focus (0.2 mm per rotation, 2 µm resolution) with safety stop

• Condenser: Oil darkfield (N.A. 1.36) with integrated X-LED³ (3.6 W, 6300K)

• Illumination: Full Köhler, adjustable brightness

• Power supply: External 100–240Vac to 6Vdc, multi-plug

Training and course provided by Ron Havenaar

After purchasing the OPTIKA B-510DK, you have the option of following practical training and in-depth education provided by Ron Havenaar. This course consists of:

• Practical training: correct setup, oil immersion usage, maintenance

• Theoretical course: interpretation of blood images, identification of biological imbalances and microorganisms

For questions about the microscope, more information about the practical day (costs and registration), the training and the costs involved, please email Cynthia: cynthia@meditecheurope.nl. Or visit https://intensivecareforyou.nl/Seminars/

The next practical training day will be held on Thursday, March 12, 2026, at Meditech Europe.

A complete solution for health professionals working with functional diagnostics.
